This through careful selection of raw materials and materials in combination with continuous quality maintenance during the production process.

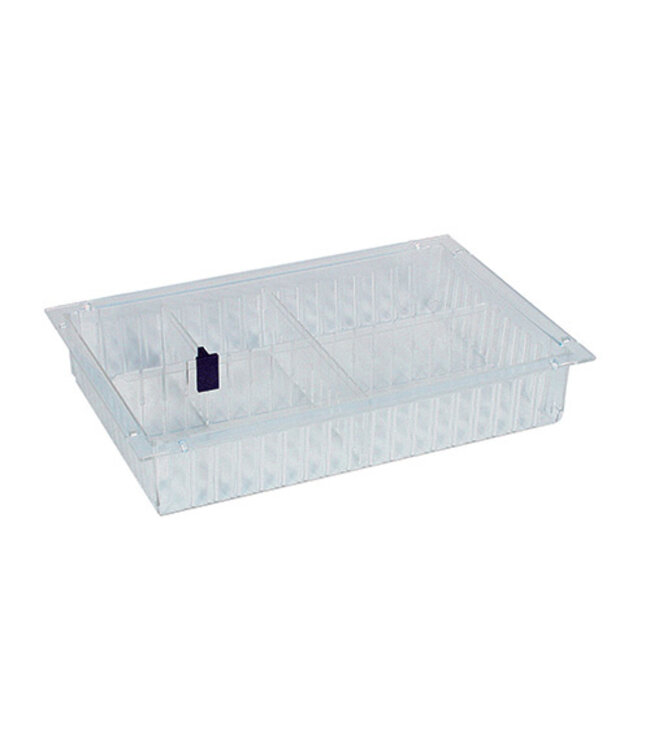

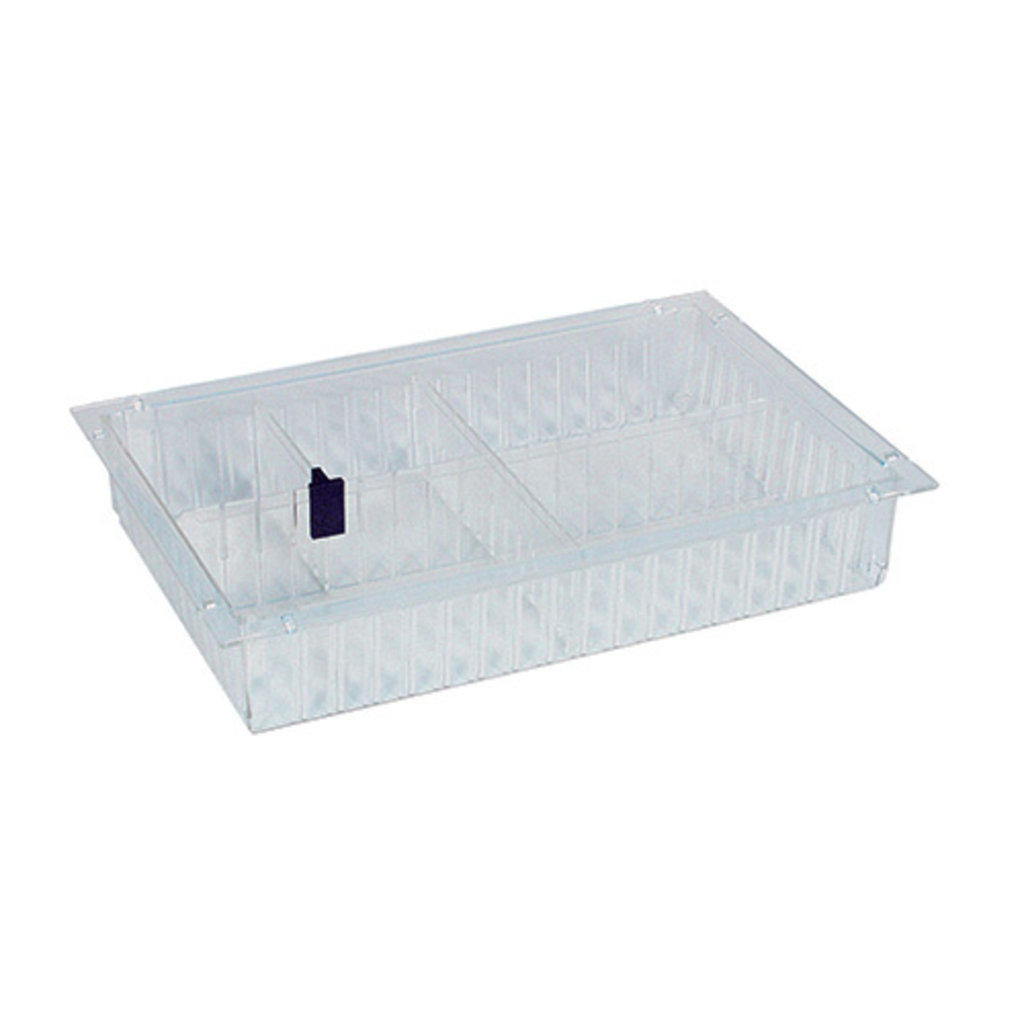

The standard ISO outer dimensions (600 x 400 mm) ensure that the modules and baskets are interchangeable in all storage and transport systems, care and medication trolleys. The modules are available in heights of 50 and 100 mm and the baskets in heights of 100 and 200 mm.
All can be subdivided by means of corresponding dividers. Modules and baskets are the main building block for this
introducing the FIFO system.
❱❱ Technical
Polycarbonate (PC) has high-quality mechanical properties, superior to ABS, Acrylic or Polypropylene.
These modules and baskets have a load capacity of 40 kg and are extremely resistant to breakage under a sudden heavy load.
❱❱ Ergonomics
The modules and baskets offer a clear and ergonomic solution, taking space-saving aspects into account.
The high transparency makes it easy for the user to perceive the content.
The PC modules and baskets form the basis of the logistics system. They are used for the
storage and transport of medication and goods and are interchangeable between storage systems and
wagons.
❱❱ Hygiene
Polycarbonate has a temperature tolerance of -40 ° C to + 120 ° C. The modules and baskets can therefore be cleaned up to 120 °.
If necessary, the baskets can be cleaned in a steam tunnel.
❱❱ Stop function
The modules and baskets are cast in 1 piece including 8 holes for the stop function.
The two-part stops work perfectly in the walls provided in the modular storage and transport systems.
The modules and baskets with stopper can be placed in the grid walls in tilting position (+/- 25 °) for better ergonomics and an overview of the contents. The stops are available separately as accessories.
❱❱ Dividers
The dividers of the baskets click into the open side walls, making them very firmly attached. The dividers of the closed modules slide in grooves. These can be inserted +/- every 3 cm.
To achieve various compartments, the dividers can be shortened as desired. The elements are then fixed together by means of a T-connection.
❱❱ Shape
The modules and baskets have a flat bearing edge to slide smoothly over the runners of cabinets, carts and racks. Because the side walls have a minimal clearance angle, there is no loss of volume.
Modules and baskets of the same length and width can be stacked together.
❱❱ Identification
Various label holders and labels can be applied to the bearing edge of the modules and baskets and to the compartment dividers. For more information see Label holders and Labels
